Matrices from arrays

The array is not exactly matrix. You can't make any mathematical operations on it. You can although make operations on the elements of the matrices. Of course to multiply two arrays with each other you can write your own scripts, but fortunately (like always ;) ) somebody already make it. You will find many math libraries allowing to implement algebraic operations. In this post I will show how to install in your VS one of them. I will be using NuGet packages, which by default you will find in your VS 2017 community.

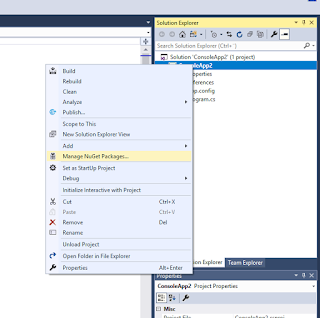

First create new project and go for the solution explorer window. Right click on ProjectName and go for Manage NuGet Packages.

The Nuget will open. Please click browse in the left top, type mat and search for mathematical libraries.

Install MathNet numeric, go back to your c# code. Everything is now ready to start using MathNet library.

https://www.mathdotnet.com/

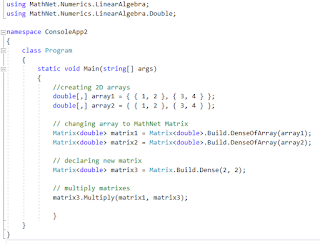

Initialize two arrays of size 2x2 and tr to multiply them using MathNet.

Remember about adding library by typing:

using MathNet.Numerics.LinearAlgebra ;

in heading of the code

Comments

Finite Element Method Programming - 1D bar element, C# methods, C# loops

On the previous post, we established 1D bar finite element. This time we will go more into the programming in C# and try to make some automation in our code. I will try to explain: - loops: for - methods in C# - arrays 1D and 2D In the beginning, we have to build a task for us, to not feel that we are losing time. So, let's imagine that we want to check the result for the same bar, but with several divisions. For example: Does the result will change if I will create 2 finite elements instead of 1? The beginning of the code will be looking the same: namespace FEM1d_basic_1 { class Program { static void Main(string[] args) { // The heading of the code Console .WriteLine("FEM 1D program for bar"); // The variables double emodulus = 210000; // 1000[kN/m2]=1GPa double barlength = 10; // [m] meters double elementarea = 0.01; // [m2] meter x meter

How to write C# components in Visual Studio for Grasshopper? If you have the Visual Studio community 2017, you have to also download assembler for grasshopper v6. https://marketplace.visualstudio.com/items?itemName=McNeel.GrasshopperAssemblyforv6 After downloading the file, start it. The VS community 2017 should be chosen automatically. Now you can start VS 2017 one more time, in the new project, you should find new options: If you choose Visual C# > Rhinoceros > Grasshopper Add-on for v6, a new window will appear: The missing files have to be added to references. The RhinoCommon and Rhino.exe you will probably find somewhere on C disc (in my case it is C:\Program Files\Rhinoceros 5 (64-bit) ). The Grasshopper.dll file location you should check on your disc through searching enginge ( in my case it was : C:\Program Files\Common Files\McNeel\Rhinoceros\5.0\Plug-ins\Grasshopper (b45a29b1-4343-4035-989e-044e8580d9cf)\0.9.76.0 ). Click finish and new empty code sh

The programming skills starts to be essential for nowadays engineer. The open source software create a great chance for developing automation in engineering, but also demand some programming knowledge from the structural engineers. Here I will try to slowly introduce engineers in to the basic programming knowledge. The main focus will be on the Finite Element Method in the parametric environment, but also the approach to some Eurocodes will be shown. The main programming language will be c# and python. The software in which I will be working will be the Grasshopper (add-on for Rhino) and Autodesk Dynamo. To start our journey with programming I have to explain the main types which you will find in codes: string - the text type, you can store letters, words or sentences in it. For example: string text1 = "architect is not engineer" ; Let's try to understand this declaration of variable in C#. First we are giving the type ( string ) then we are setti
